iPhone 6 and iPhone 6 Plus: What the new phones look like inside

Image Credit: iFixit
@thesullivan

The people at iFixit have been up all night. Two iFixit people flew to Australia to get the iPhone 6 and the iPhone 6 Plus early, then they flew home and started tearing the phones apart, said iFixit’s Scott Dingle.

The team started tearing down the phones at 3PM Thursday. They finished at dawn on Friday, as people around the country lined up to buy the new phones.

They started with the iPhone 6, with its 4.7-inch screen. This is what they saw.

Opening the back cover of the phone.
Removing the Apple control button

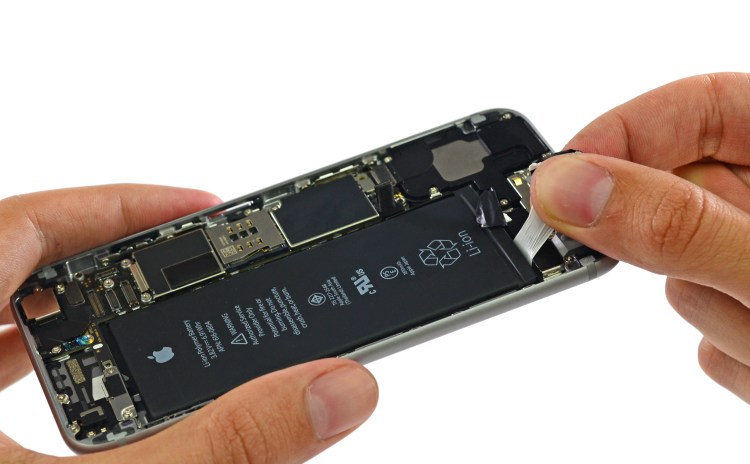

Removing the battery from the back of the phone.
The extra-large Li-ion Polymer battery.
The iPhone 6’s rear-facing camera is 8 megapixels, and has f/2.2 aperture, True Tone flash, and phase-detection autofocus.
The headphone jack and Lightning connector. Two have now become one assembly now live on a single cable.
The circuit board contains the A8 chip (red), the Skyworks LTE chip (yellow), Qualcomm LTE Modem (orange), SkyWorks Mid Band LTE PAD (purple), and the InvenSense 6-axis Gyroscope and Accelerometer Combo (black).
This is the component that causes the phone to vibrate.
The main parts of the phone all in one shot.

Here’s the iFixit video of the iPhone 6 teardown:

June 5th: The AI Audit in NYC

Join us next week in NYC to engage with top executive leaders, delving into strategies for auditing AI models to ensure fairness, optimal performance, and ethical compliance across diverse organizations. Secure your attendance for this exclusive invite-only event.

http://youtu.be/M38AlYbV7eM?list=UUHbx9IUW7eCeJsC4sBCTNBA

And here’s the video of the iPhone 6 Plus teardown:
